A Integrated Compressed Air Solution

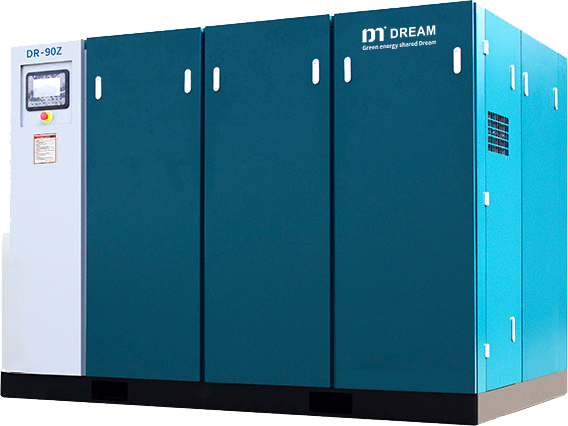

Model: DR-Z & DRV-Z Series
Brand: DREAM
Working Pressure: 20~40 [ bar ] 290.1~580.6 [ psig ]
Air Capacity （FAD）: 1.6~37.7 [ m³/min ] 56.5~1331.4 [ cfm ]
Power: 22~315 [ KW ] 30.0~428.3 [ hp ]
Other parameters, please inquiry us.
Products Features：
■ Durable and stable air end: two-stage integrated air end, third-generation asymmetric rotor technology; suitable for medium-pressure compression ratio matching, high volumetric efficiency; adopt heavy-duty bearings, and the rotor is well stressed; two-stage rotors are respectively passed gear drive, so that each stage of the rotor has the best linear speed; using a large rotor, low speed design, low noise and low vibration;
■ IE3 motor, save your electricity cost, IP54, B-level temperature rise is suitable for harsh environments such as large dust and high temperature;
■ Multiple noise reduction design, calculated according to noise theory, with special flame retardant muffler cotton inside, to reduce the noise of the unit and provide a quieter environment for use.
■ Independent air intake, reduce intake resistance, multi-function intake valve group, start without load, motor load is small. Use high-efficiency filters to effectively filter particulates in the air;
■ Centrifugal fan with high-pressure plate-fin cooler has high wind pressure, low noise, independent external suction, exhaust air upward through a specially designed air duct to prevent hot air from returning; plate-fin cooler has high heat exchange efficiency and internal pressure The loss is small, which can make the oil fully exchange heat, no heat zone;
■ The oil and air barrels developed professionally according to medium and high pressure conditions can achieve the best coarse separation effect under various conditions; after the second separation of the customized oil core, the final oil content of the air is not more than 3ppm;
■ Specially designed main engine oil supply system to stabilize the oil supply pressure and ensure that the unit (especially the bearing) can get sufficient oil supply in the later period of long-term operation, the unit operates more stable and has a longer life.
* Please feel free to contact us, we will reply you within 24 hours.
